50W1300 Non-Oriented Electrical Steel is supplied by Jiangsu Zhongtong Weiye Special Steel Co., Ltd. with mill certificates, custom sizing and export packing. Factory direct supply for industrial buyers worldwide.
50W1300 Non-Oriented Electrical Steel is widely used in transformer and motor manufacturing. Send us the grade, thickness, width, quantity and destination port for a quotation with lead time and available mill certificates.
Related products: M12 Non-Oriented Electrical Steel | M15 Non-Oriented Electrical Steel | M19 Non-Oriented Electrical Steel
The raw materials and auxiliary materials of our 50W1300 non oriented silicon steel are mainly imported from South Korea and produced using South Korea’s advanced technology. The quality has been recognized by Chinese users and has been widely praised in countries and regions such as the United States, Japan and Europe.

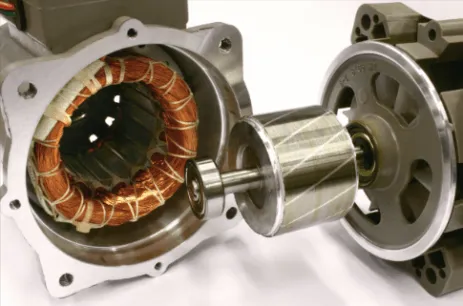

Non oriented silicon steel coil containing 1.0 to 4.5% of silicon and less than 0.08% of carbon is called silicon steel.50W1300 non oriented silicon steel coil has the characteristics of high magnetic permeability, low coercive force, and large resistivity.It is mainly used in motors, transformers, electrical appliances, and electrical instruments. So it is also called Electrical steel.
| Grade | Tensile Strength (N/mm²) | Yield Strength (N/mm²) | Elongation (%) | Hardness (Hv0.5) |
|---|---|---|---|---|
| 50W1300 | 300-400 | 200-300 | 35-42 | 100-125 |
| 50W800 | 325-425 | 230-320 | 32-39 | 105-130 |
| 50W600 | 345-445 | 230-320 | 30-37 | 115-140 |
| 50W470 | 385-485 | 250-350 | 25-35 | 140-165 |
| 35W440 | 385-485 | 250-350 | 25-35 | 140-165 |
| 35W300 | 420-520 | 270-370 | 25-35 | 150-190 |
| 35WS250 | 440-540 | 280-380 | 25-35 | 150-185 |
| 30W230 | 450-550 | 280-380 | 15-25 | 180-220 |
| Grade | Nominal Thickness (mm) | Theoretical Density (kg/dm³) | Core Loss P1.5/50 (W/kg) | Magnetic Induction B50 (T) | Lamination Factor (%) | ||
|---|---|---|---|---|---|---|---|
| Guaranteed Value | Typical Value | Guaranteed Value | Typical Value | ||||
| 50W1300 | 0.5 | 7.85 | ≤6.10 | 5.80-6.00 | ≥1.74 | 1.75 | ≥97 |
| 50W800 | 0.5 | 7.8 | ≤5.30 | 4.70-5.00 | ≥1.72 | 1.74 | |
| 50W600 | 0.5 | 7.75 | ≤4.30 | 3.70-4.00 | ≥1.70 | 1.71 | |
| 50W470 | 0.5 | 7.7 | ≤3.30 | 2.70-3.00 | ≥1.70 | 1.7 | |
| 35W440 | 0.35 | 7.7 | ≤3.00 | 2.50-2.70 | ≥1.70 | 1.7 | ≥96 |
| 30W230 | 0.3 | 7.6 | ≤0.25 | 2.10-2.20 | ≥1.65 | 1.67 | |
