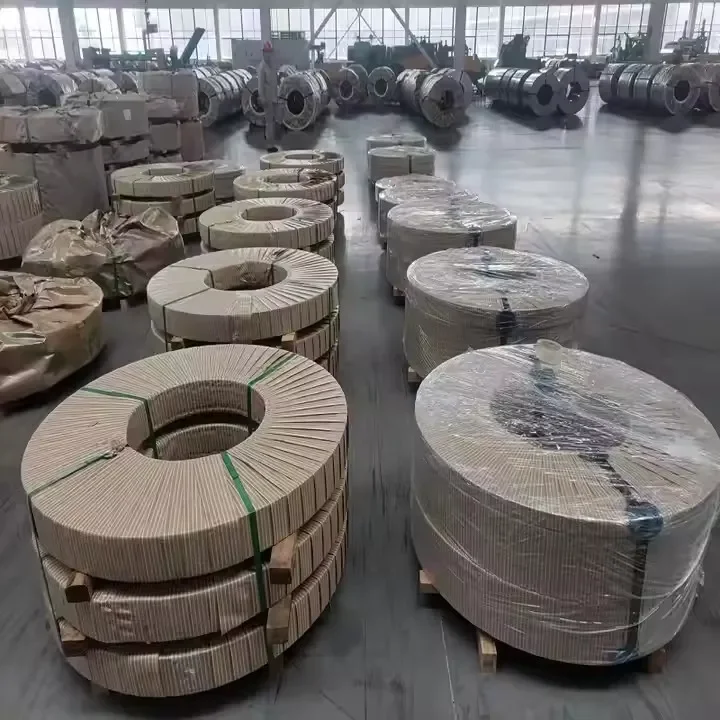

China Silicon Steel Manufacturer & Exporter | High-Quality Steel Products | Baowu

B18R080 Electrical steel

Oriented silicon steel is a low-carbon silicon iron alloy material with a silicon content of 0.5%~4.5%, which has characteristics such as high permeability(which can reduce Joule loss in power equipment, improve efficiency and energy-saving effects), lower iron loss and high resistance coefficient.

Ürün Detayları

Product: oriented (GO) electrical steel B18R070 strip ,oriented Silicon steel sheet B18R070
GO Electrical steel B18R070 application: Transformer, reactor, mutual inductor, motor
GO Electrical steel B18R070 insulation coating: S
GO Electrical steel B18R070 Edge condition: Cut edge(EC)
B18R070 GO Electrical steel type: Domain refinement
B18R070 oriented (GO) electrical steel manufacturer: BAOWU STEEL, CHINA

B18R070 GO Electrical steel Magnetic properties

Grade	Thickness (mm)	Assumed Density (kg/dm3)
B18R070	0.18	7.65

Typical values		Guaranteed values		Lamination factory(stacking/space factor)
P1.7/50 (W/Kg)	B8 (T)	P1.7/50 (W/Kg) max	B8 (T) min	Min. Lamination factory
0.68	1.90	0.69	1.88	94%

B18R070 oriented (GO) electrical steel coil/strip size and tolerance: Coil diameter Inner diameter 508mm +12mm/-8mm
Tolerance on dimension and shape

Nominal thickness(mm)	Nominal thickness tolerance(mm)	Longitudinal thickness deviation(mm)	Transverse thickness deviation(mm)	Width tolerance(Cut edge)(mm)	Burr height(mm)	Nominal width(mm)
0.18	+0.010 -0.015	+0.012 0	+0.010 0	+0.5 0	≤0.025	900-1050

B18R070 oriented (GO) electrical steel typical mechanical properties

Tensile strength(L)	Yield strength(L)	Elongation(L)	HV1
345MPa	324MPa	13%	201
